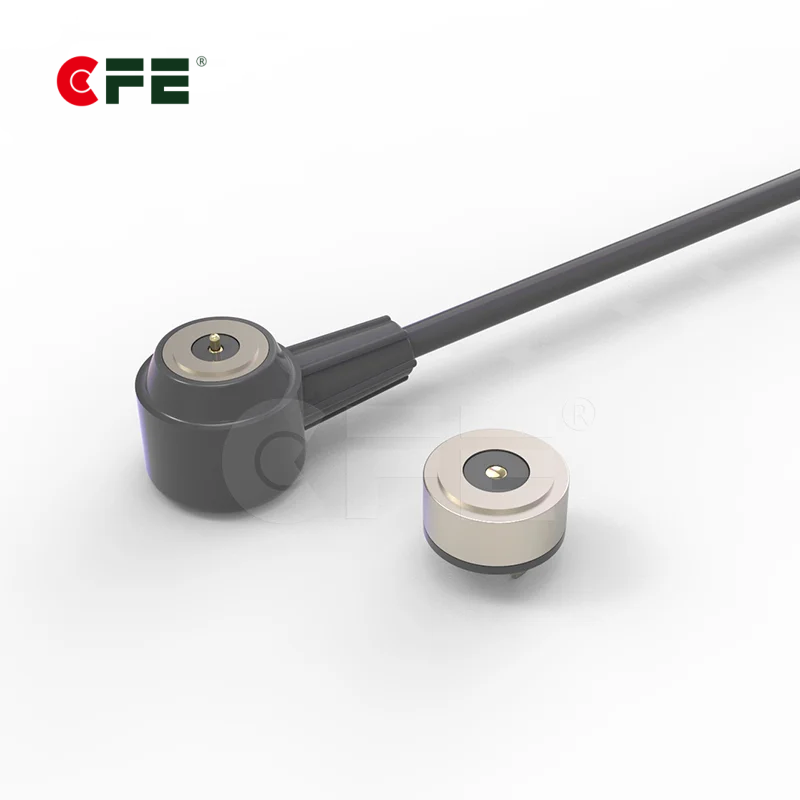

Round Magnetic Power Cable Connector - CXA-0038

[CXA-0038] Round magnetic power cable connector factory

P/N： CXA-0038
Magnetic force： 5N (horizontal position connection)
Support high current (5A-10A), faster recharge, with less operating time
Life test：20,000 cycles
Use for LED light easy to separate and can protect device
Pass Rohs, reach, HF, environmental protection

Description

CFE is a professional magnetic power cable factory, main provided about magnetic connector and magnetic cable connector solutions. CFE has over 17 years experience of research magnetic connector and has more than hundreds of projects. We can offer professional design and solve solutions according to customers’ products application of needs.

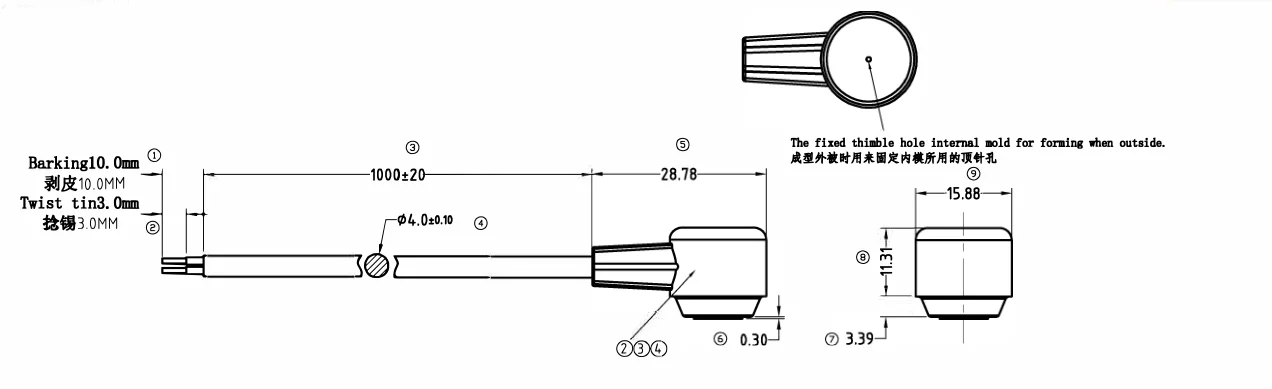

Specification of Round magnetic power cable connector factory—Male Part

Part No.	CMA-0038
Cable Shape	Round cable, flat cable
Life test	20,000 cycles
Rated voltage & current	5 V, 3 A
Contact resistance	50 milliohm Max

Specification of Round magnetic power cable connector factory—Female Part

Round-magnetic-power-cable-connector

Part No.	M-BP14202
Rated voltage & current	24 V, 5 A
Contact resistance	50 milliohm Max

Introduction to magnetic charging cable

— In the fierce differentiated product strategy competition, user experience has become the pursuit for any intelligent product designers. After the traditional plug-in board self-locking connector products,a new connection scheme which is the magnetic charging cable is gradually applied to the intelligent high-end product market. The connection solution has the advantages of a long life of pogo pin connector for more than 50000 times, automatic adsorption connection, easy removal of adsorption interface, high waterproof level and unlikely to loosen the machine.

— The magnetic charging cables consist of a pogo pin magnetic connector and connecting cables. It is an optimized upgraded solution based on the function of charging and statistics and signal transmission applying traditional I / O adapters, micro USB, Type-C, HDMI, RJ45. More than 20 kinds of standard magnetic charging cables and more than 300 customized ones are currently available in CFE. CFE products conform to RoHS 2.0, HF, CP65, REACH, NP, etc.

— The applications of magnetic cables enjoy increasing popularity such as Consumer Electronics, Smart Wear, Smart Home, Health Detectors, Internet of Things, Medical Industry, Household Appliances, etc.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.
