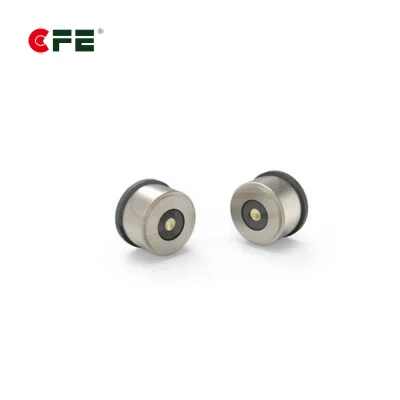

Custom Spring-Loaded Magnetic Connectors
Applications of Spring-Loaded Magnetic Connectors
Spring-loaded magnetic connectors are designed for reliable power and signal transmission in compact electronic devices. These connectors provide stable conductivity, strong magnetic alignment, and long operational life for demanding applications.
Medical Devices
Spring-loaded magnetic connectors are widely used in portable medical devices, diagnostic equipment, and monitoring systems where stable and secure connections are essential for reliable performance.
Charging Docks
Magnetic charging connectors provide fast and accurate alignment for charging docks, handheld terminals, smart charging stations, and portable electronic products.
Industrial Equipment
Industrial automation systems and smart control devices require durable connectors that withstand repeated connections and harsh operating conditions. Spring-loaded magnetic connectors offer excellent durability and stable electrical performance for industrial applications.
Wearable Devices
Compact magnetic pogo pin connectors are ideal for wearable electronics such as smartwatches, fitness trackers, wireless earbuds, and portable smart devices due to their lightweight, space-saving design.
Technical Specifications
Specification |
Details |
|---|---|
| Current Rating | 1A – 30A Custom Options |
| Cycle Life | Up to 10,000 Mating Cycles |
| Contact Resistance | Low Resistance for Stable Power Transmission |
| Waterproof Options | IPX4, IPX7, and Custom Waterproof Designs |
| Plating | Gold-Plated Contacts |
| Connector Type | Spring Loaded Magnetic Pogo Pin Connector |
Key Features of Custom Spring-Loaded Magnetic Connectors
- Stable electrical conductivity for charging and signal transfer
- Strong magnetic alignment for secure connection
- Long cycle life with high durability
- Compact and lightweight connector design
- Custom pin configurations and current ratings available
- Suitable for industrial, medical, and wearable applications
- Gold-plated contacts for corrosion resistance
- Waterproof options available for harsh environments
FAQs
What is a spring-loaded magnetic connector?
A spring-loaded magnetic connector uses spring-loaded pogo pins and magnetic alignment technology to create reliable electrical connections for charging and data transmission applications.
Are magnetic connectors waterproof?
Yes. Custom waterproof magnetic connectors are available with IP-rated protection for industrial equipment, outdoor electronics, and wearable devices.
What applications use spring-loaded magnetic connectors?
These connectors are commonly used in medical devices, charging docks, industrial automation equipment, wearable electronics, and smart consumer products.
Can the current rating be customized?
Yes. Current rating, pin layout, connector size, and waterproof structure can all be customized according to application requirements.
Need Custom Magnetic Connector Solutions?
CFECONN provides high-quality custom spring-loaded magnetic connector solutions for industrial, medical, wearable, and consumer electronic applications. Our engineering team supports customized designs, waterproof structures, and high-current connector solutions based on your project requirements.
Contact us today to request a custom solution or product quotation.
