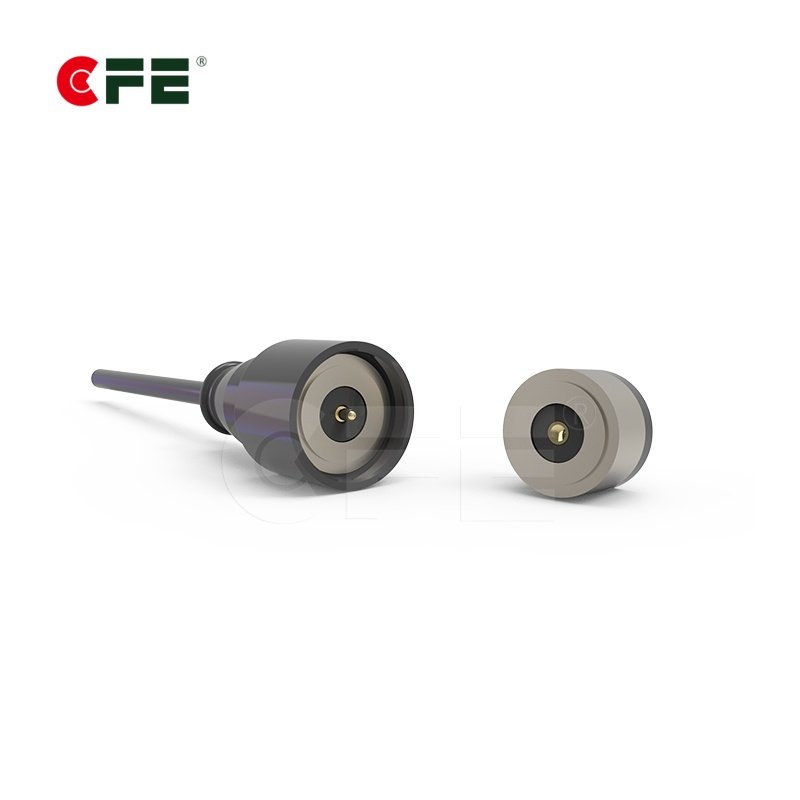

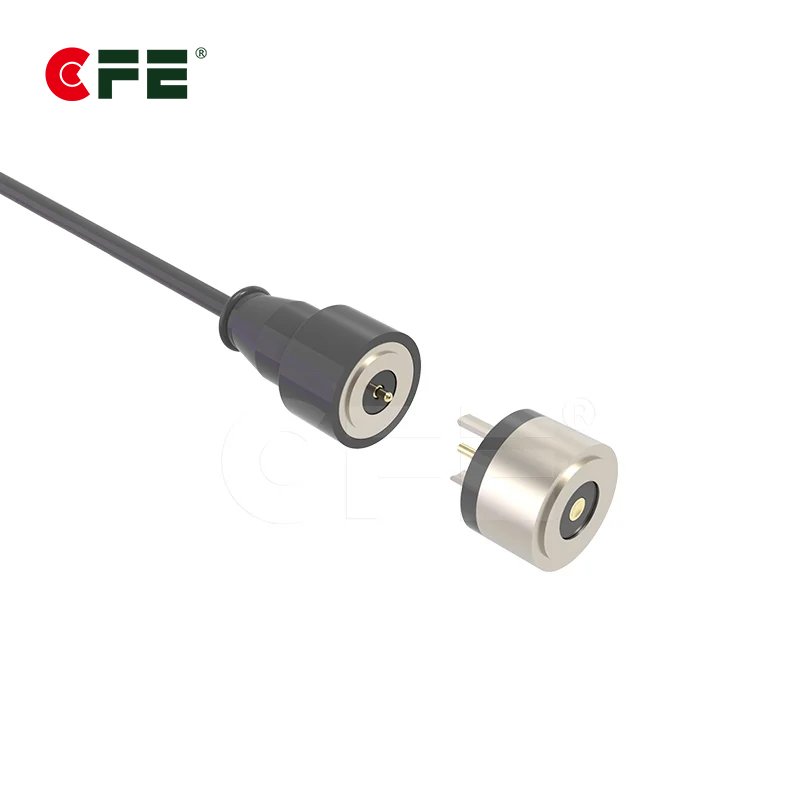

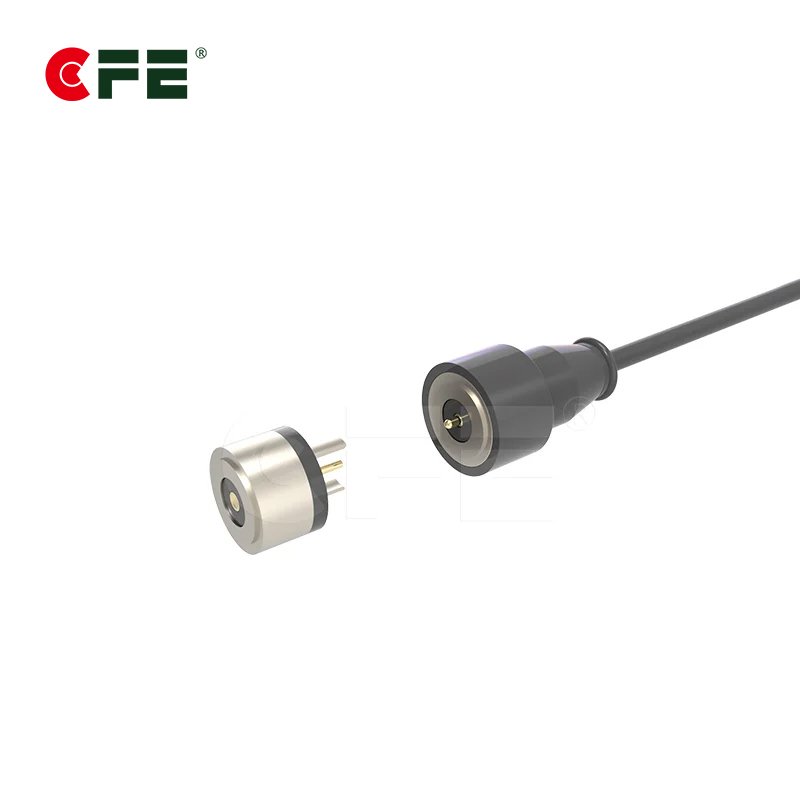

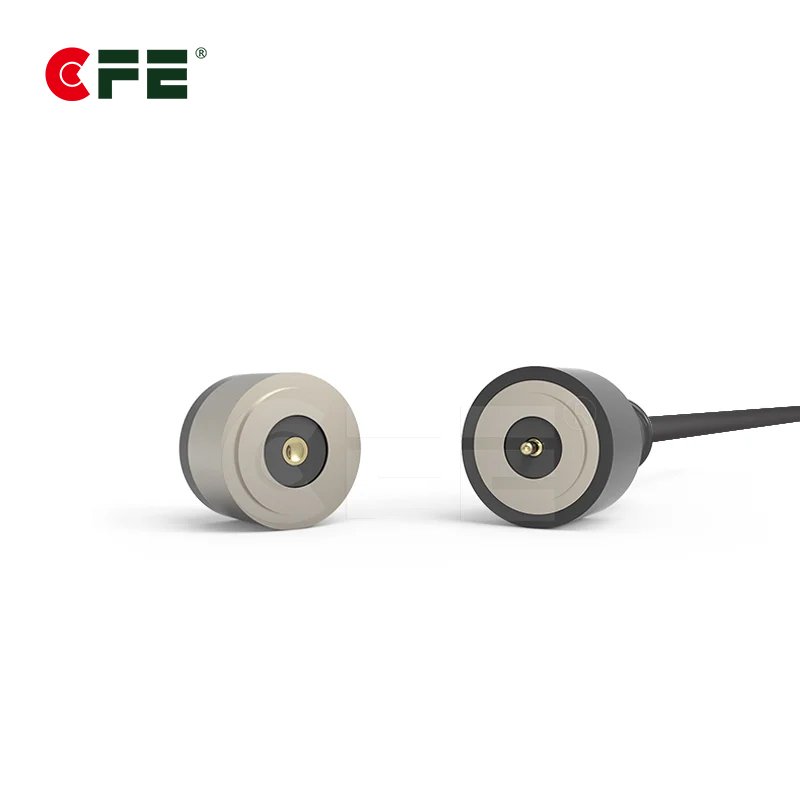

Magnetic USB Charging Cable for Smart Blindfold

[CXA-0067] Magnetic usb cable connector with charging

P/N: CXA-0067
Magnetic force: 3 N，Not degaussing.
Rated Voltage&Current: DC 12 V，2 A faster recharge
Life test: 50,000 cycles，Long life, high quality
Pass Rohs, reach, HF, environmental protection

Description

Magnetic usb cable connector with charging, high quality magnetic connector, it can achieve excellent waterproof design, never rusty with long life. Magnetic usb connector application automation equipment.

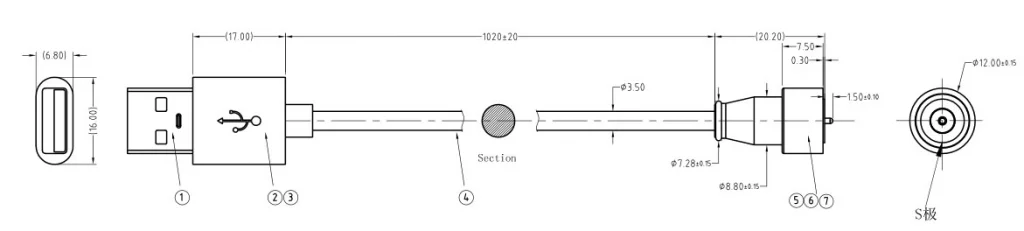

Specification of Magnetic usb cable connector with charging—Male Part

Magnetic usb cable connector with charging

Part No.	CMA-0067
Contact force	80±20g at 1.1mm working stroke
Life test	50,000 cycles
Rated voltage & current	12 V, 2 A
Contact resistance	50 milliohm Max
Application	Automation equipment

Specification of Magnetic usb cable connector with charging—Female Part

Magnetic usb cable connector with charging

Part No.	MFA-0002
Rated voltage & current	24 V, 5 A
Contact resistance	50 milliohm Max
Application	Automation equipment

Introduction to magnetic charging cable

— In the fierce differentiated product strategy competition, user experience has become the pursuit for any intelligent product designers. After the traditional plug-in board self-locking connector products,a new connection scheme which is the magnetic charging cable is gradually applied to the intelligent high-end product market. The connection solution has the advantages of a long life of pogo pin connector for more than 50000 times, automatic adsorption connection, easy removal of adsorption interface, high waterproof level and unlikely to loosen the machine.

— The magnetic charging cables consist of a pogo pin magnetic connector and connecting cables. It is an optimized upgraded solution based on the function of charging and statistics and signal transmission applying traditional I / O adapters, micro USB, Type-C, HDMI, RJ45. More than 20 kinds of standard magnetic charging cables and more than 300 customized ones are currently available in CFE. CFE products conform to RoHS 2.0, HF, CP65, REACH, NP, etc.

— The applications of magnetic cables enjoy increasing popularity such as Consumer Electronics, Smart Wear, Smart Home, Health Detectors, Internet of Things, Medical Industry, Household Appliances, etc.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.

About us

DONGGUAN CFE ELECTRONIC CO., LTD. (hereinafter referred to as CFE), a subsidiary of CFE CORPORATION CO., LTD, was founded in 2009. CFE is a comprehensive national high-tech enterprise integrating design, research and development, manufacturing of precision pogo pins and magnetic connectors. We also provide services including precision turning parts, precision injection molding parts, magnetic charging cables, component assembly as well as design, development, and manufacture of production testing equipment.
