- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test:30,000 cycles
- Rated current & voltage: DC 12V; 1A
Description

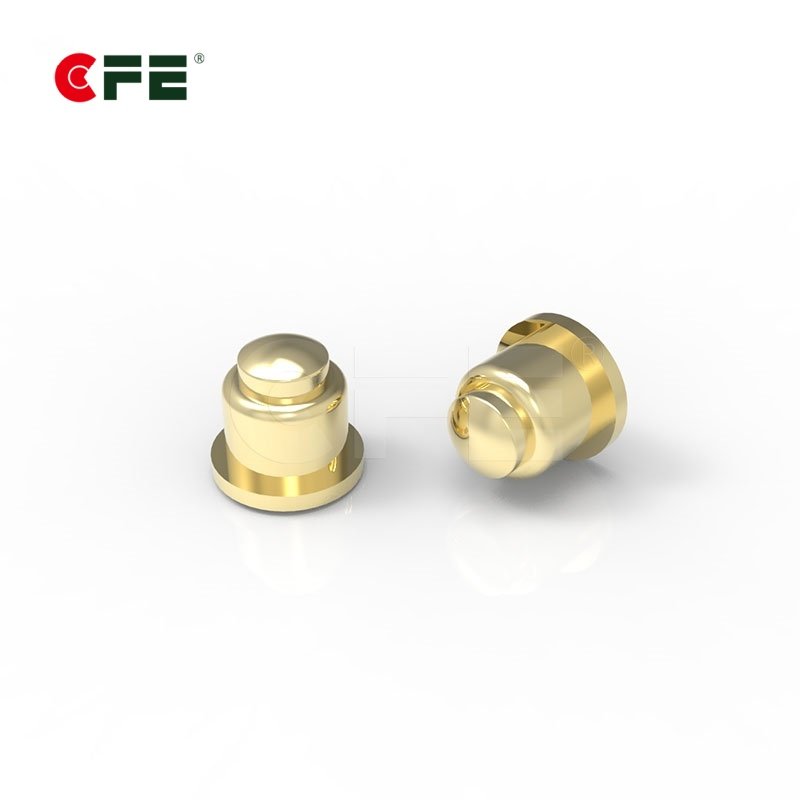

SMT SMD low profile spring load contact supplier in China. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better.
Specification of SMT SMD low profile spring load contact
|
Part No. | BF45111 | |
| Materials | Plunger | Brass 0.075u” Au over Ni | |
| Barrel | Brass 0.075u” Au over Ni | ||
| Spring | SUS surface treatment | ||
| Mechanical | Contact force | 70g±20g at 0.4mm working stroke | |
| Full stroke | 0.4mm | ||
| Life test | 30,000 cycles | ||
| Electrical | Rated current and voltage | DC 12V; 1A | |
| Contact-resistance | 50milliohm Max | ||
Drawing of SMT SMD low profile spring load contact
To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.
Customized service
The unit of A, B, C, D, E, F is mm
Part NO. | A | B | C | D | E | F | Stroke(mm) | Force(g) | Current(A) | PDF |
|---|---|---|---|---|---|---|---|---|---|---|
| BF00111 | 4.30 | 3.30 | 0.50 | 1.80 | 1.50 | 0.90 | 1.0 | 50 | 1 |  |
| BF00217 | 15.20 | 13.70 | 0.60 | 1.63 | 1.50 | 0.90 | 0.9 | 100 | 1 | |
| BF00218 | 15.20 | 13.70 | 0.63 | 1.63 | 1.50 | 0.90 | 0.9 | 100 | 1 | |
| BF00261 | 16.50 | 15.00 | 0.60 | 1.55 | 1.45 | 0.90 | 0.9 | 100 | 1 | |
| BF00511 | 4.00 | 2.50 | 0.50 | / | 1.50 | 0.90 | / | 120 | 1 | |
| BF00611 | 3.00 | 2.00 | 0.50 | 2.00 | 1.50 | 0.90 | 0.7 | 50 | 1 | |
| BF00811 | 5.50 | 4.50 | 0.50 | 1.80 | 1.48 | 0.90 | 0.8 | 120 | 1 | |
| BF01011 | 4.20 | 3.20 | / | / | 1.00 | 0.50 | 0.8 | 40 | 1 | |
| BF01211 | 17.00 | 14.70 | 2.00 | 1.70 | 2.00 | 1.40 | 1.5 | 130 | 2 | |
| BF01311 | 9.00 | 6.50 | 3.30 | 1.50 | 1.60 | 1.10 | 80 | |
Showing 1 to 10 of 157 entries
Learn more about How to order special pogo pin, If you have special requirements please contact us
You may like our customized pogo pin connector
Application of SMT SMD low profile spring load contact
 |
 |
 |
||
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
- Consumer electronics products/PCB board
- Digital camera/Medical products/ Printer cartridges
- Golf handle/ Electric vehicles/ Telephony applications
- Cardiac defibrillator/Car charging /Air purifier
- LED flat luminaries/LED flash light/Tablet/Laptop/PC
- Power bank/ Digital product/ Small household electrical application
- Charging products/Signal transmission products etc
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
