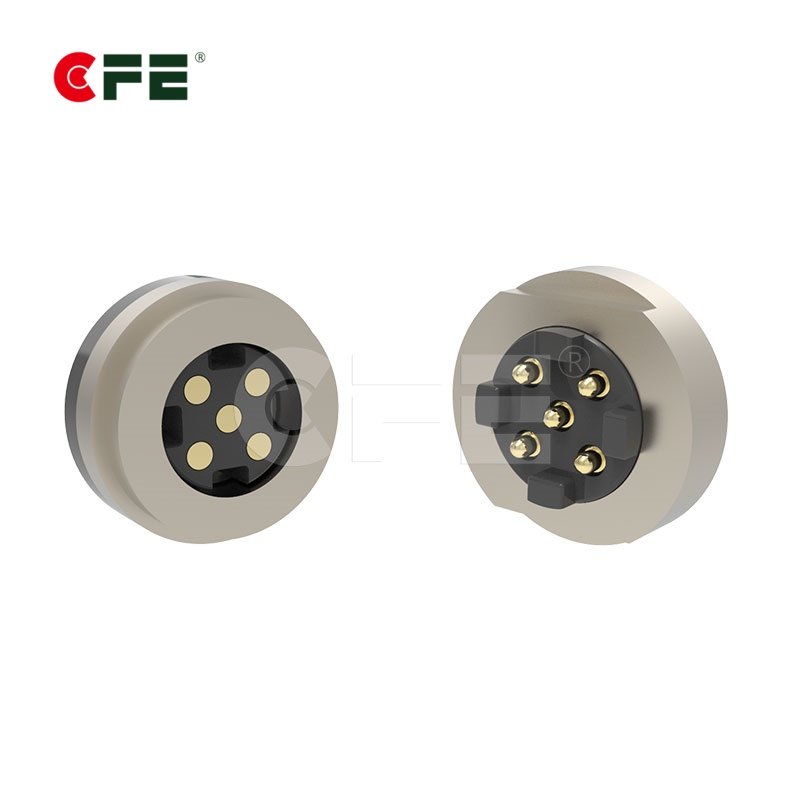

5 Pin Magnetic Male & Female Electrical Connectors

[MXA0031] 5 Pin magnetic male and female electrical connectors

P/N:MXA0031
Magnetic force: 6 N (horizontal position connection)
Rate Voltage&Current: DC 12 V, 1 A
Life test: 20000 cycles Drop automatically disconnect, protect your device Pass Rohs, reach, HF, environmental protect

Description

5 Pin Magnetic male and female electrical connectors, Black round high temperature plastic material,surface gold plated 10U, used for Drive recorder, CFE Magnetic Male and female electrical connectors having quick plug and remove, automatic connection, automatic positioning function ect.

Specification of 5 Pin magnetic male and female electrical connectors—Male Part

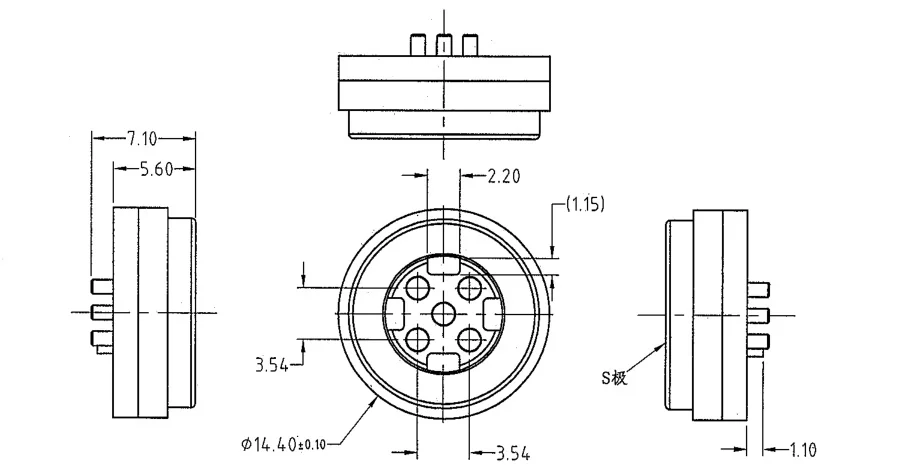

5 Pin Magnetic Male and female electrical connectors

Part No.	MMA0031
Contact force	50±20g at 0.7mm working stroke
Life test	20,000 cycles
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Application	Drive recorder

Specification of 5 Pin magnetic male and female electrical connectors—Female Part

5 Pin Magnetic Male and female electrical connectors

Part No.	MFA0031
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	Drive recorder

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
