Medical Equipment Magnetic USB Charging Connector

[MXA-0018] Magnetic electrical connector usb charging for medical equipment

P/N: MXA-0018
Magnetic force：3 N
Rated Voltage&Current: DC 12 V , 1 A
Magnet: NdFeB， permanent magnets
Life test:20,000 cycles
Pass Rohs, reach, HF, environmental protection

Description

Magnetic electrical connector usb charging for medical equipment. CFE is a professional manufacturer of global sales magnetic connector. CFE Magnetic charging cable ensures compact design, stable connection , diverse uses and safe protection when detached from devices.

Specification of CFE Magnetic electrical connector usb charging for medical equipment—Male Part

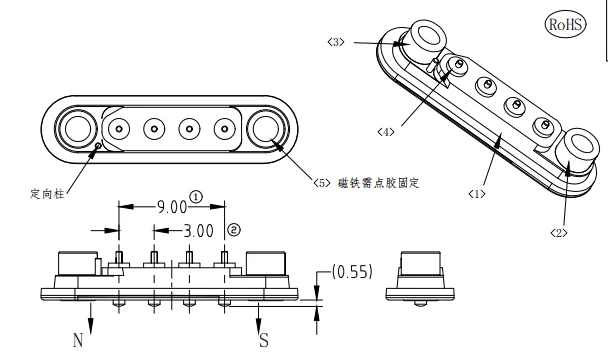

MXA0018 male end 4pin pogopin magnetic connector

Part No.	MMA-0018
Contact force	40±20 g at 0.6 mm working stroke
Life test	20,000 cycles
Rated voltage & current	12 V, 1 A
Contact resistance	30 milliohm Max
Application	Medical equipment

Specification of CFE Magnetic electrical connector usb charging for medical equipment—Female Part

MXA0018 Female end 4pin pogopin magnetic connector

Part No.	MFA-0018
Rated voltage & current	12V, 1 A
Contact resistance	30 milliohm Max
Magnet	NdFeB
Application	Medical equipment
Downloaded	Drawing

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
