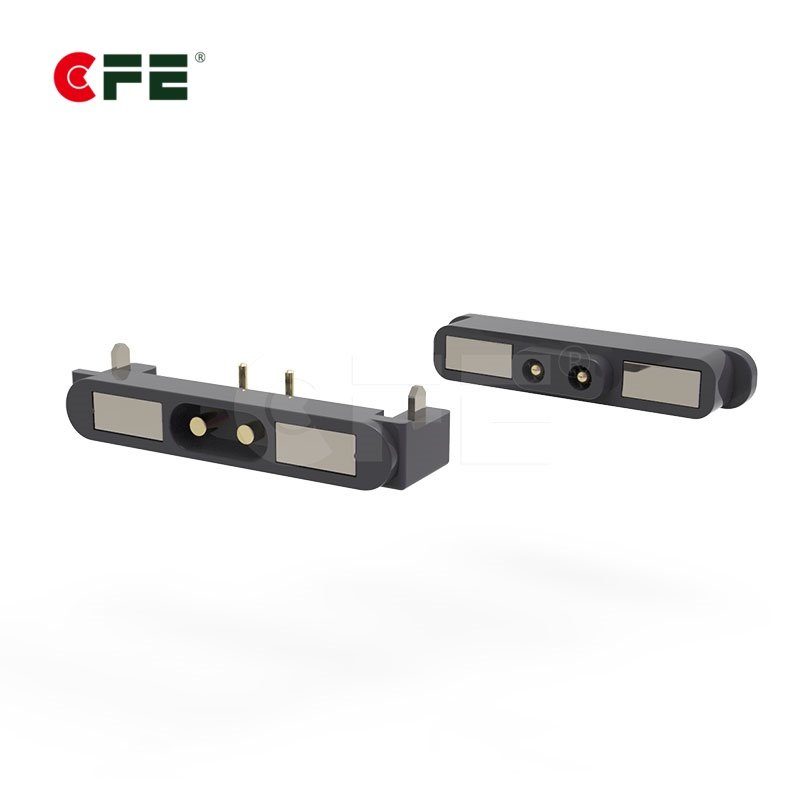

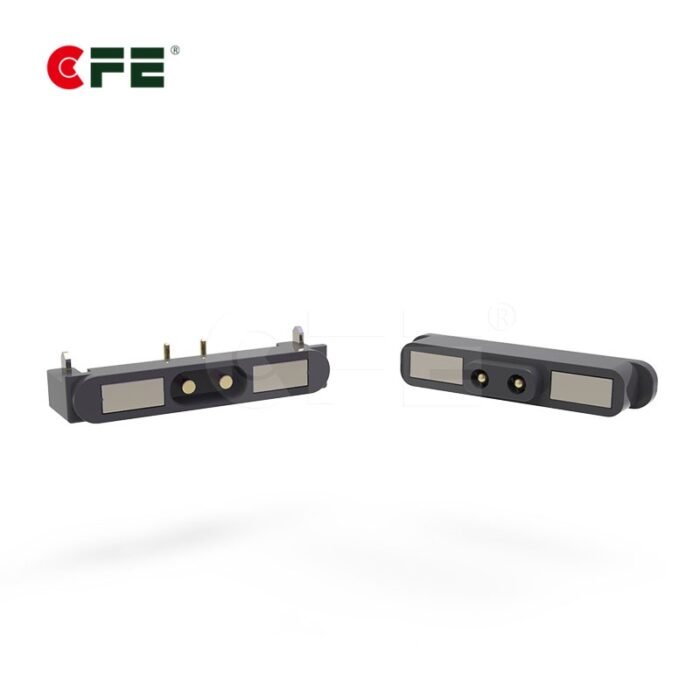

2-Pin Magnetic Pogo Connector with USB

[MXA-0043] 2 Pin magnetic pogo connector with usb

P/N: MXA-0043
Magnetic force：5 N
Convenient connection for automatic adsorption
Magnet: NdFeB， permanent magnets
Life test:50,000 cycles
Pass Rohs, reach, HF, environmental protection

Description

2 Pin magnetic Pogo connector with usb is from CFE design. The products using black high temperature plastic（UL94 V-0). Depend on different design to do test, ensure quality. We can custom shape of magnetic dc connector shape to meet customers needs.

Specification of CFE 2 Pin magnetic Pogo connector with usb—Male Part

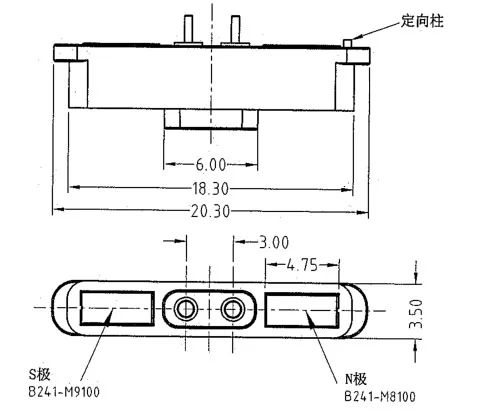

2Pin magnetic pogo connector with usb

Part No.	MMA-0043
Contact force	70±20 g at 1.0 mm working stroke
Life test	50,000 cycles
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Application	Medical instrument

Specification of CFE 2 Pin magnetic Pogo connector with usb—Female Part

2Pin magnetic pogo connector with usb

Part No.	MFA-0043
Rated voltage & current	12 V, 2 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	Medical instrument
Downloaded	Drawing

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
