Introduction
Spring-loaded connectors — often called pogo pins or spring probes — are small but critical components in modern electronics. They provide a reliable, temporary electrical connection between two devices or across test fixtures. Whether you’re building wearable devices, medical gear, telecom modules, or consumer gadgets, choosing the right manufacturer affects performance, durability, and cost. This guide breaks down what buyers should look for and how to compare spring-loaded connector manufacturers.
What are spring-loaded connectors?
Spring-loaded connectors are metal pins with an internal spring. When compressed, they maintain contact pressure that ensures consistent electrical connectivity. Key features include:

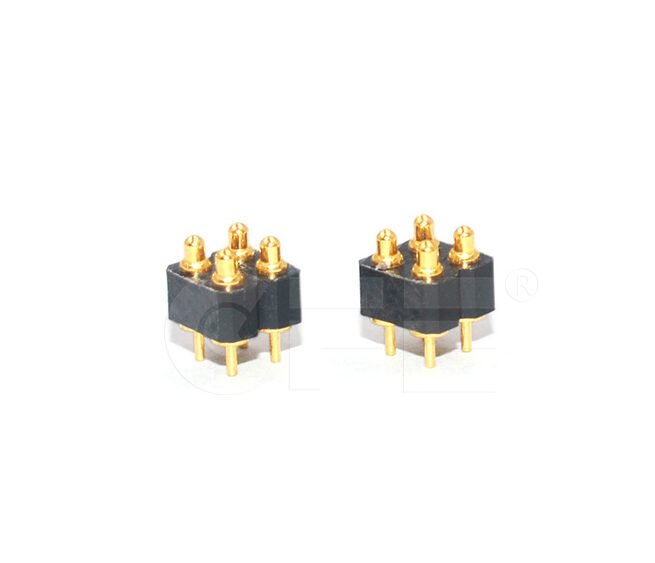

DIP spring-loaded electrical contact connector MP110 1133 B04100A 1
-
Plunger/barrel design — the moving part and its housing.
-
Spring force — measured in grams; affects contact reliability.
-
Plating — gold, nickel, or other finishes that improve conductivity and corrosion resistance.
-
Travel (stroke) — how far the pin compresses; important for tolerance.
These connectors are used in test fixtures, battery contacts, docking stations, medical devices, and automotive electronics.
Why manufacturer choice matters
All pogo pins look similar at first glance, but manufacturing quality determines:
-
Contact reliability under vibration or repeated use.
-
Cycle life (how many mating cycles before failure).
-
Electrical resistance and signal integrity for high-speed applications.
-
Tolerance control for consistent mechanical fit.
-
Compliance (e.g., RoHS, REACH) and traceability for regulated industries.
A strong manufacturer provides technical data, sample support, and quality control processes like 100% plating inspection and cycle testing.
How to evaluate spring-loaded connector manufacturers
When you compare suppliers, evaluate these areas:
1. Technical specifications & data sheets
Good manufacturers publish detailed datasheets: spring force, stroke, resistance, current rating, recommended mounting, and recommended mating surface.
2. Quality systems
Look for ISO 9001, IATF 16949 (automotive), or other relevant certifications. Ask about in-line testing and batch traceability.
3. Materials & plating
Gold plating is preferred for low contact resistance and corrosion resistance. Ask about plating thickness (microinches or micrometers) and base materials (copper alloys, stainless steel).
4. Customization capability
Some projects need custom lengths, forces, or packaging. Choose suppliers that offer tooling and engineering collaboration.
5. Sample & prototyping support
Fast sample turnaround lets you validate fit and function early. Reliable manufacturers often offer small sample lots and evaluation builds.
6. Production capacity & lead times
Global supply-chain issues make lead times critical. Confirm capacity, minimum order quantities (MOQs), and backup manufacturing locations.
7. Support & documentation
Good technical support, clear test reports, and failure analysis services help shorten development cycles.
Common categories of spring-loaded connectors
-
Standard pogo pins: general-purpose, used in test fixtures.
-
High-current pogo pins: designed for battery or power contacts.
-
High-speed pogo pins: engineered for radio-frequency (RF) or high-speed digital signals.
-
Low-profile pogo pins: for slim devices and wearables.
-
Coaxial pogo pins: for RF testing with controlled impedance.
Typical specifications to request from manufacturers
When talking to suppliers, request:
-
Cycle rating (e.g., 50,000 cycles)
-
Contact resistance (mΩ)
-
Current rating (A)
-
Spring force (grams)
-
Travel/stroke (mm)
-
Plating type and thickness
-
Operating temperature range
-
RoHS/REACH and other compliances
Questions to ask during supplier evaluation
-
Can you provide sample lots and their test reports?
-
What is your typical lead time for production orders?
-
What is the expected cycle life under our specified load?
-
Do you offer custom tooling or design support?
-
Which quality certifications do you maintain?
Practical tips for designers
-
Specify tolerances for mating surfaces to avoid false opens.
-
Add guides or alignment features to reduce misalignment stress.
-
Use gold plating for low-resistance, corrosion-resistant contacts in signal-critical designs.
-
For high-current paths, prioritize a larger contact area and lower spring resistance.
FAQs
Q1: What’s the difference between pogo pins and spring probes?
A1: These terms are often used interchangeably. “Pogo pin” is a common industry name for a spring probe with a plunger, barrel, and internal spring.
Q2: How long do spring-loaded connectors last?
A2: Cycle life varies by design and plating. Typical ranges are 10,000 to 100,000 cycles. High-end, gold-plated connectors can exceed 100,000 cycles under favorable conditions.
Q3: Can spring-loaded connectors handle high-speed signals?
A3: Yes — high-speed pogo pins and coaxial versions are engineered for controlled impedance and minimal signal loss for RF and high-speed digital signals.
Q4: Are there standard sizes or are they custom?
A4: There are standard catalogue sizes that meet many needs. However, many manufacturers offer custom lengths, forces, and plating upon request.
Q5: Do pogo pins require maintenance?
A5: Regular inspection is recommended in high-cycle environments. Keep mating surfaces clean and avoid exposure to harsh chemicals that can degrade plating.
Conclusion
Selecting the right spring-loaded connector manufacturer requires balancing technical specs, quality systems, customization capability, and supply reliability. Focus on measurable data — cycle life, contact resistance, plating details — and demand samples and test reports before committing to production. The right partner will reduce field failures, speed development, and save costs in the long run.
