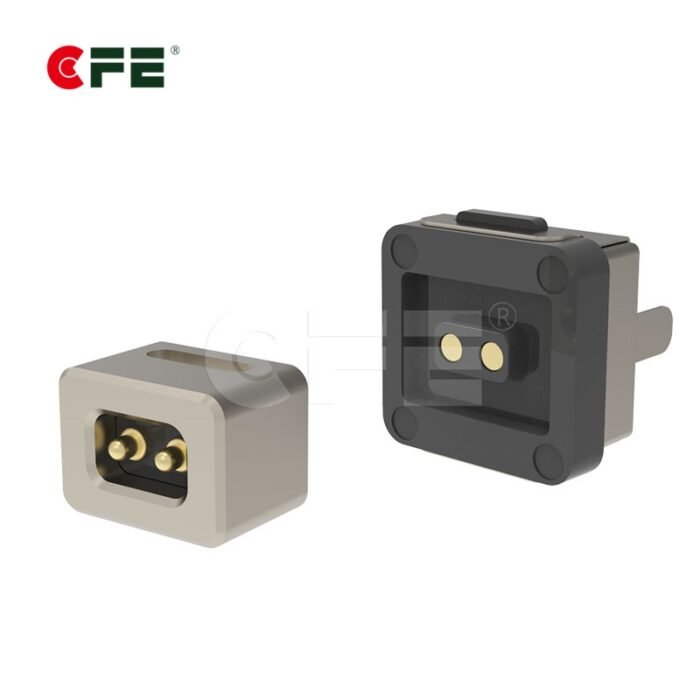

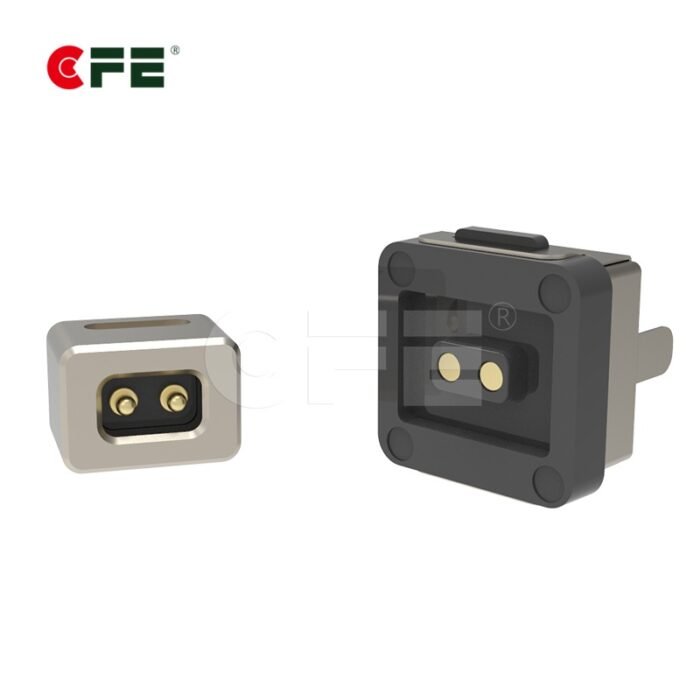

2 Pin Magnetic DC Power Connector

[MXA-0010] 2 pin magnetic dc power connector

P/N: MXA-0010
Magnetic force：4.6N
Voltage&Current: 12 V,5 A ,high current connection, high life expectancy
Magnet: NdFeB， permanent magnets
Life test:20,000 cycles
Pass Rohs, reach, HF, environmental protection

Description

2 pin magnetic dc power connector. CFE is a professional magnetic connector manufacturer. Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction. Compare with traditional connectors, our magnetic dc power connector has many advantages like the high current and long life, quick charging, safe and efficient using.

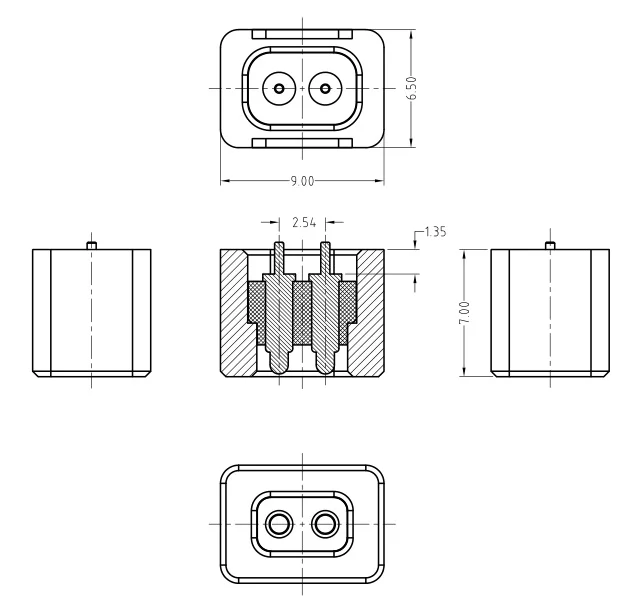

Specification of CFE 2 pin magnetic dc power connector—Male Part

2 pin magnetic dc power connector

Part No.	MMA-0010
Contact force	120±20% at 1.0 mm working stroke
Life test	20,000 cycles
Rated voltage & current	12 V, 5 A
Contact resistance	50 milliohm Max
Application	LED、Mouse、Outdoor camera

Specification of CFE 2 pin magnetic dc power connector—Female Part

2 pin magnetic dc power connector

Part No.	MFA-0010
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	LED、Mouse、Outdoor camera

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.
