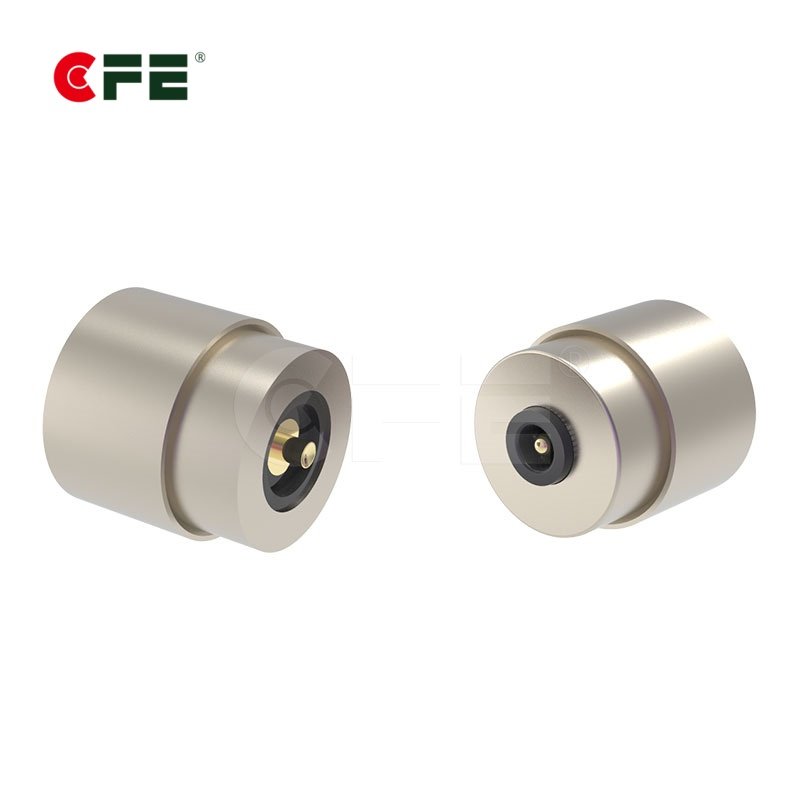

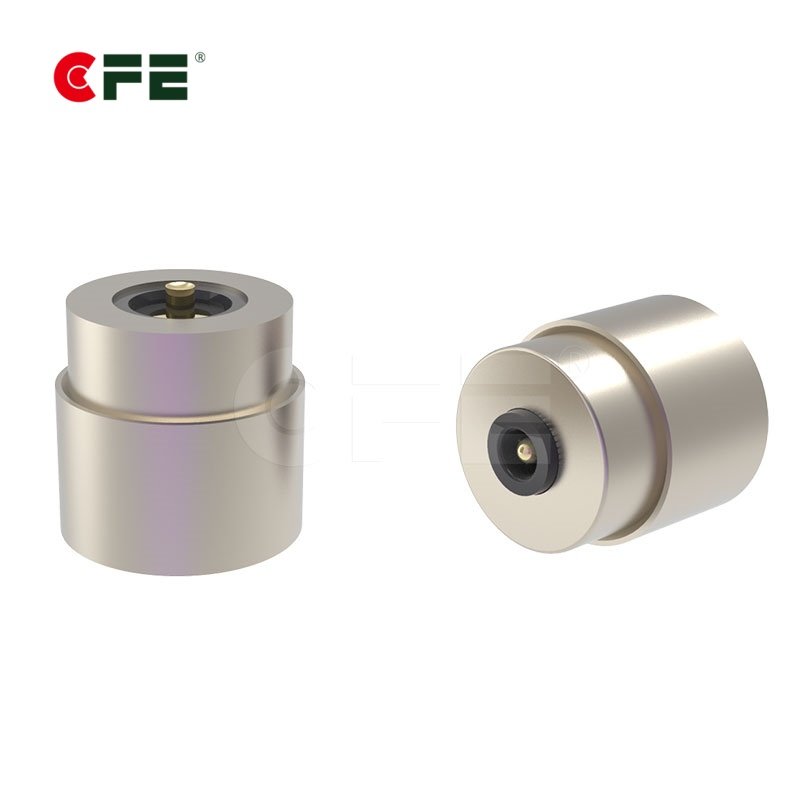

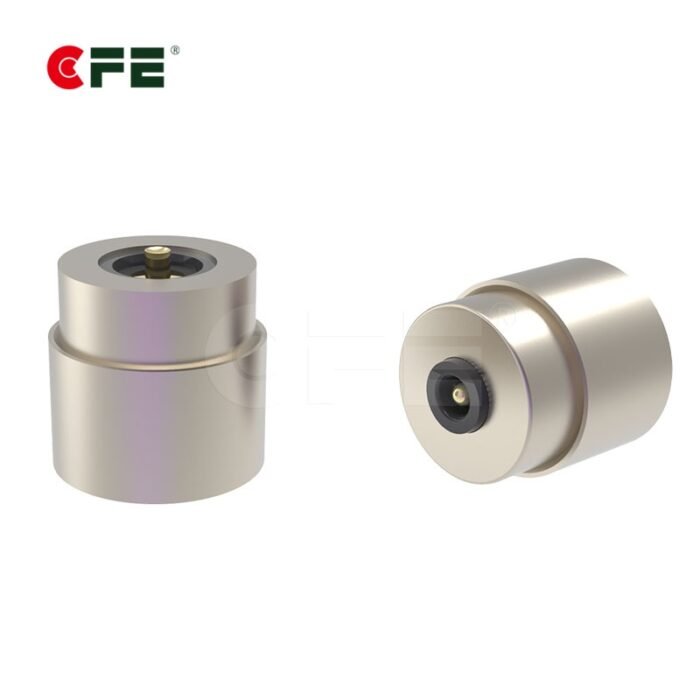

Circular 1 Pairs Pogo Pin Magnetic Power Connector

[MXA0028] Circular 1 pairs pogo pin magnetic power connector

P/N:MXA0028
Magnetic force: 2N
Rate Voltage&Current: DC 12 V, 1 A
Life test: 20,000 cycles
Environment: anti-corrosion, 48 hours salt-spray test
Pass Rohs, reach, HF, environmental protection

Description

Circular 1 pairs pogo pin magnetic power connector, Save space, According to the program you provide, customized by our professional engineers to meet your different needs, can suitable for Electronic pen, LED etc, CFE round magnetic connector having the characteristics of portability and automatic connection, etc.

Specification of Circular 1 pairs pogo pin magnetic power connector—Male Part

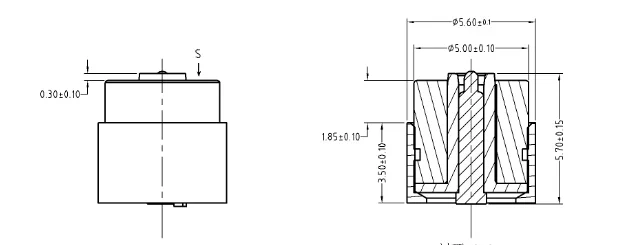

Circular 1 pogo pin magnetic power connector

Part No.	MMA0028
Contact force	20±10g at 0.4mm working stroke
Life test	20,000 cycles
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Application	Electronic pen，LED

Specification of Circular 1 pairs pogo pin magnetic power connector—Female Part

Circular 1 pogo pin magnetic power connector

Part No.	MFA0028
Rated voltage & current	12 V, 2A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	Electronic pen，LED
Downloaded

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
