8 Pin Magnetic Electronic Connectors

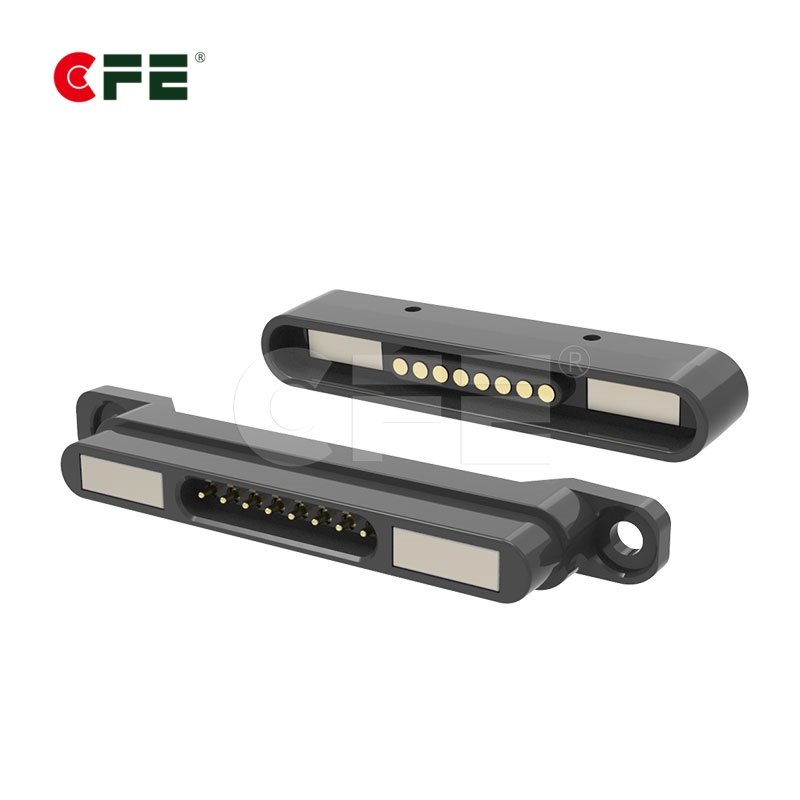

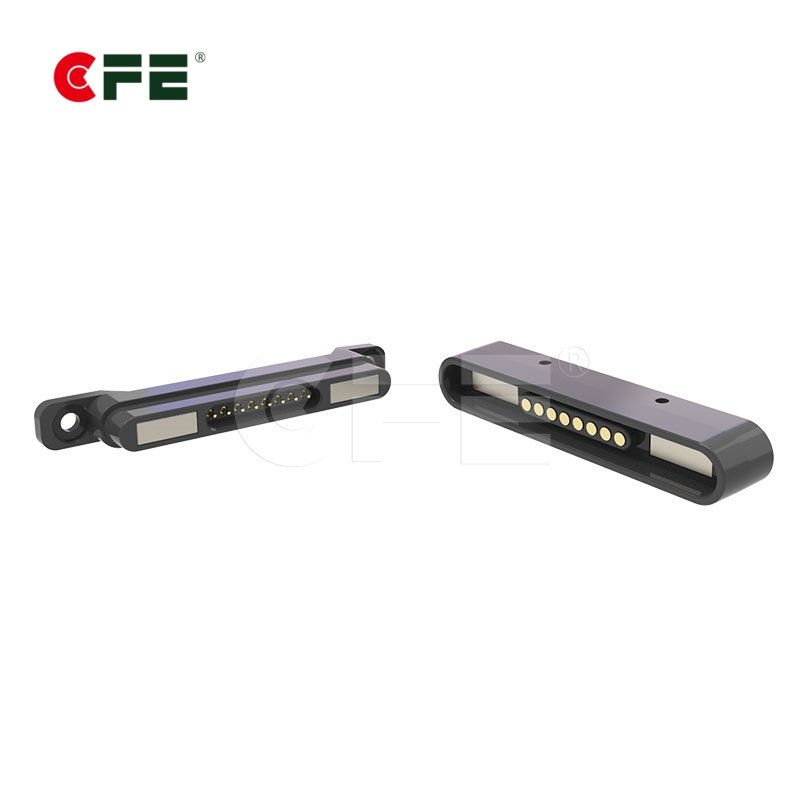

[MXA-0049] 8 pin male and female magnetic electronic connectors

P/N:MXA-0049
Magnetic force：6 N
Convenient connection for automatic adsorption
Magnet: NdFeB， permanent magnets
Life test:100,000 cycles
Pass Rohs, reach, HF, environmental protection

Description

8 pin male and female magnetic electronic connectors, wholesale various high quality magnetic electrical connector products from global magnetic electrical connector suppliers. Our engineers will design of magnetic connector according to customers requirements.

Specification of CFE 8 pin male and female magnetic electronic connectors—Male Part

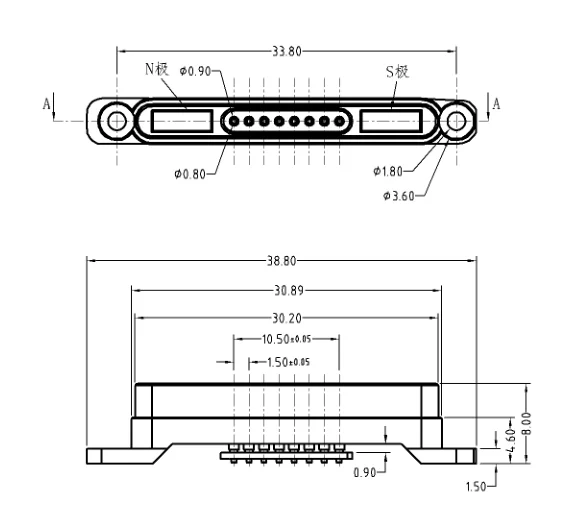

8 Pin male and female magnetic electronic connectors

Part No.	MMA0049
Contact force	50±20 g at 0.7 mm working stroke
Life test	100,000 cycles
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Application	Temperature sensor
Downloaded	Drawing

Specification of CFE 8 pin male and female magnetic electronic connectors—Female Part

Part No.	MMA-0049
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	Temperature sensor

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
