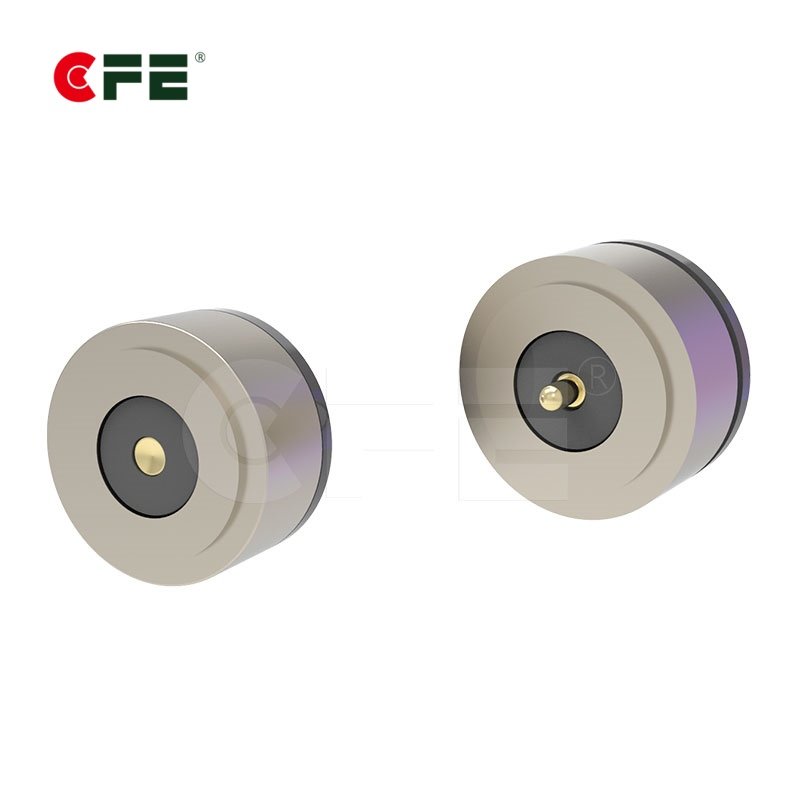

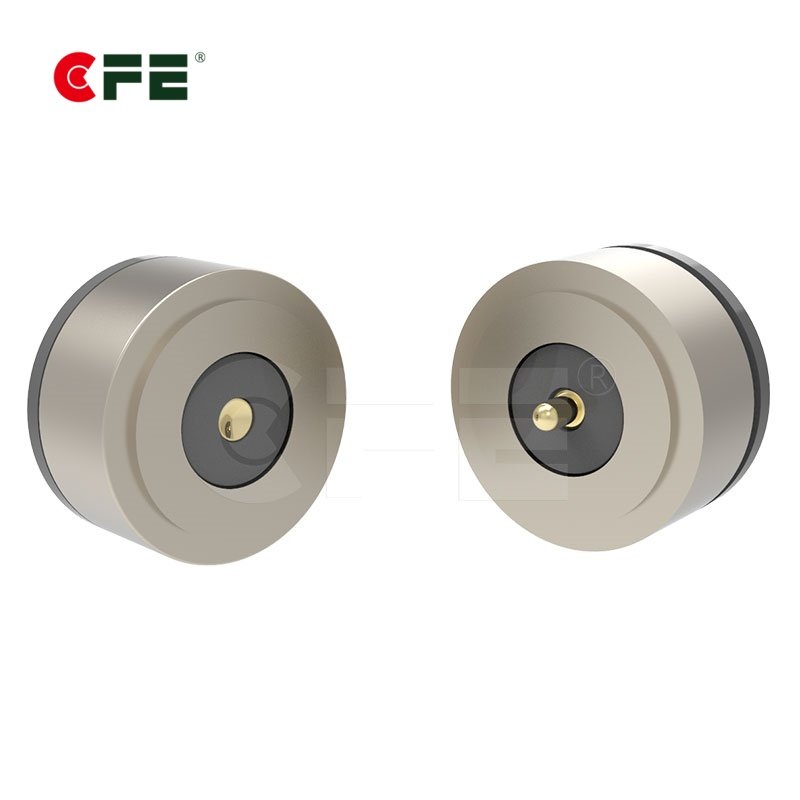

CFE Round 2 Pin Pogo Pin Magnetic Connector

[MXA-0002] CFE round 2 pin pogo pin magnetic connector

P/N:MXA0002
Magnetic force: 3 N
Rate Voltage&Current: DC24 V, 3 A
Waterproof: IP 68
Pass Rohs, reach, HF, environmental protection
Drop automatically disconnect, protect your device

Description

CFE round 2 pin pogo pin magnetic connector, high current magnetic pogo pin connector, waterproof IP68; our magnetic connector series provides all common functions and is suitable for power and data transmission. Humanized design that it uses a magnetic interface to remove the device easier and it is not easy to drive the host; Easy operation.

Specification of CFE round 2 pin pogo pin magnetic connector—Male Part

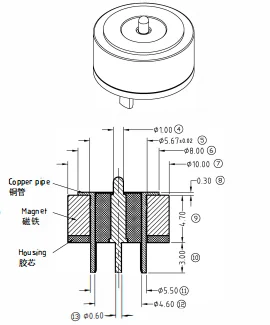

Customized magnetic connector with LED

Part No.	MMA0002
Contact force	0.8 N±20.2 N at 1.15 mm working stroke
Life test	50,000 cycles
Rated voltage & current	24 V, 3 A
Contact resistance	50 milliohm Max
Application	LED、Headphone、Electronic locks、Smart home

Specification of CFE round 2 pin pogo pin magnetic connector—Female Part

Customized magnetic connector with LED

Part No.	MFA-0002
Rated voltage & current	12 V, 3 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	LED、Headphone、Electronic locks、Smart home
Downloaded	Drawing

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.
