Deposit Box Magnetic USB 4 Pin Charger Connector

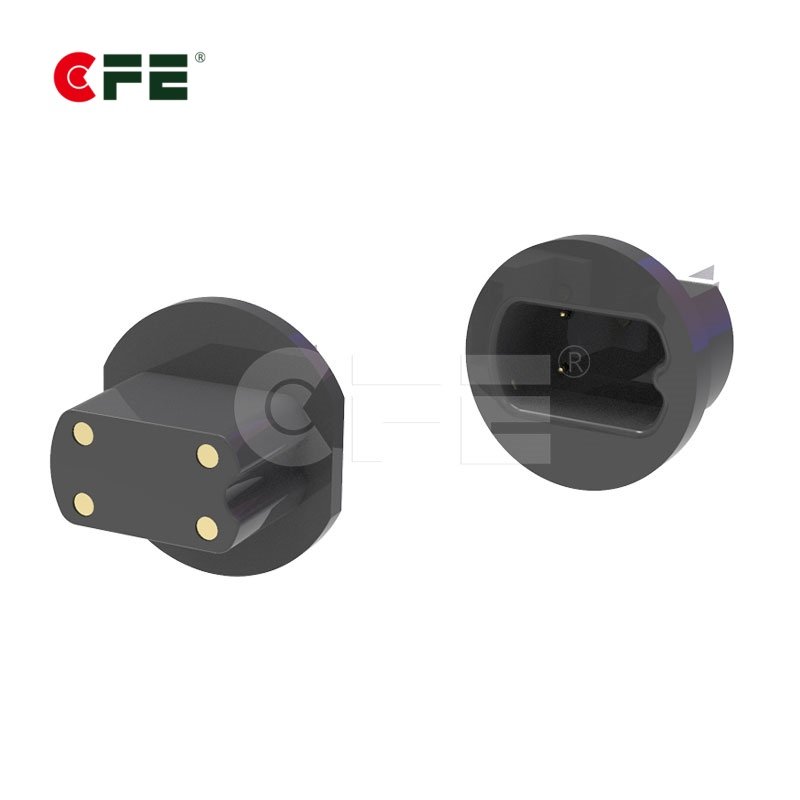

[MXA0062] Magnetic usb 4 pin pogo charger connector for safe deposit box

P/N:MXA0062
Magnetic force: 3 N
Rate Voltage&Current: DC 12 V, 2 A
Life test: 50,000 cycles
Environment: anti-corrosion, 48 hours salt-spray test
Pass Rohs, reach, HF, environmental protection

Description

Magnetic usb 4 pin pogo charger connector for safe deposit box, CFE focus on research and development for magnetic connector. At present, More products in many areas of successful application development experience: products related to medical, automotive, electrical, consumer electronics, VR equipment, intelligent wear equipment, etc.

Specification of Magnetic usb 4 pin pogo charger connector for safe deposit box—Male Part

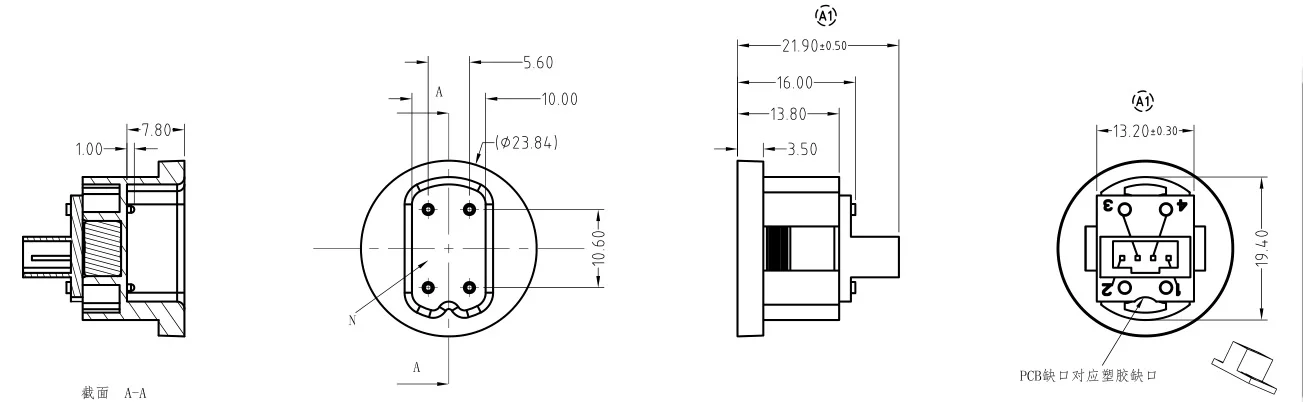

Magnetic usb 4 pin pogo charger connector for safe deposit box

Part No.	MMA0062
Contact force	70±20g at 1.0mm working stroke
Life test	50,000 cycles
Rated voltage & current	12V, 2A
Contact resistance	50 milliohm Max
Application	Safe

Specification of Magnetic usb 4 pin pogo charger connector for safe deposit box—Female Part

Magnetic usb 4 pin pogo charger connector for safe deposit box

Part No	MFA0062
Rated voltage & current	12V, 2 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	Safe
Downloaded

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.
