Round Magnetic Connector Adapter Electronic Devices

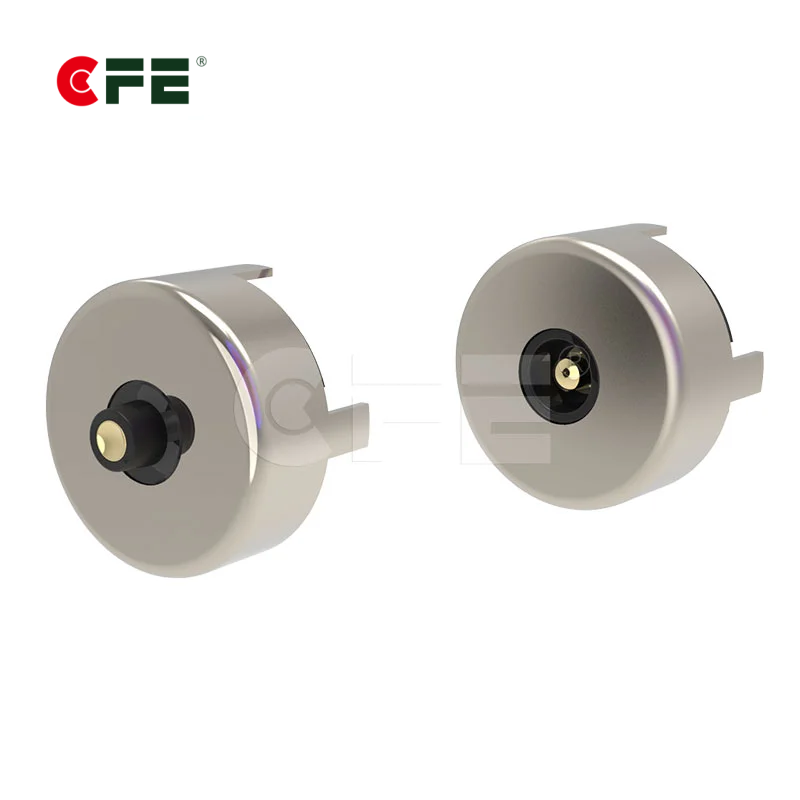

[MXA-0008] Round magnetic connector adapter for electronic device

P/N: MXA-0008
Magnetic force：2 N
Voltage&Current: 12 V, 3 A faster recharge
Magnet: NdFeB, permanent magnets
Life test:20,000 cycles
Environment: anti-corrosion,48 hours salt-spray test
Pass Rohs, reach, HF, environmental protection

Description

Round magnetic connector adapter for electronic device. CFE is a professional design and manufacture of magnetic connector & magnetic cable connector for customers. CFE Magnetic charging cable ensures compact design, stable connection , diverse uses and safe protection when detached from devices.

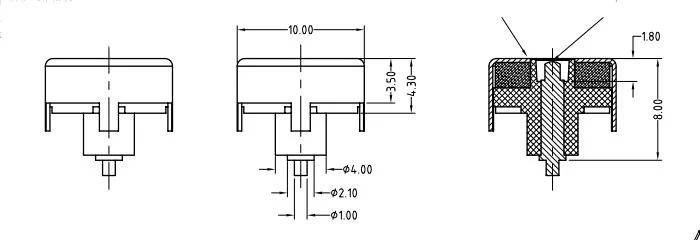

Specification of CFE Round magnetic connector adapter for electronic device—Male Part

Round magnetic connector adapter for electronic device

Part No.	MMA-0008
Contact force	120±20% at 1.0 mm working stroke
Life test	20,000 cycles
Rated voltage & current	12 V, 3 A
Contact resistance	50 milliohm Max
Application	Electronic device

Specification of CFE Round magnetic connector adapter for electronic device—Female Part

Round magnetic connector adapter for electronic device

Part No.	MFA-0008
Rated voltage & current	12 V, 3 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	Electronic device
Downloaded	Drawing

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
