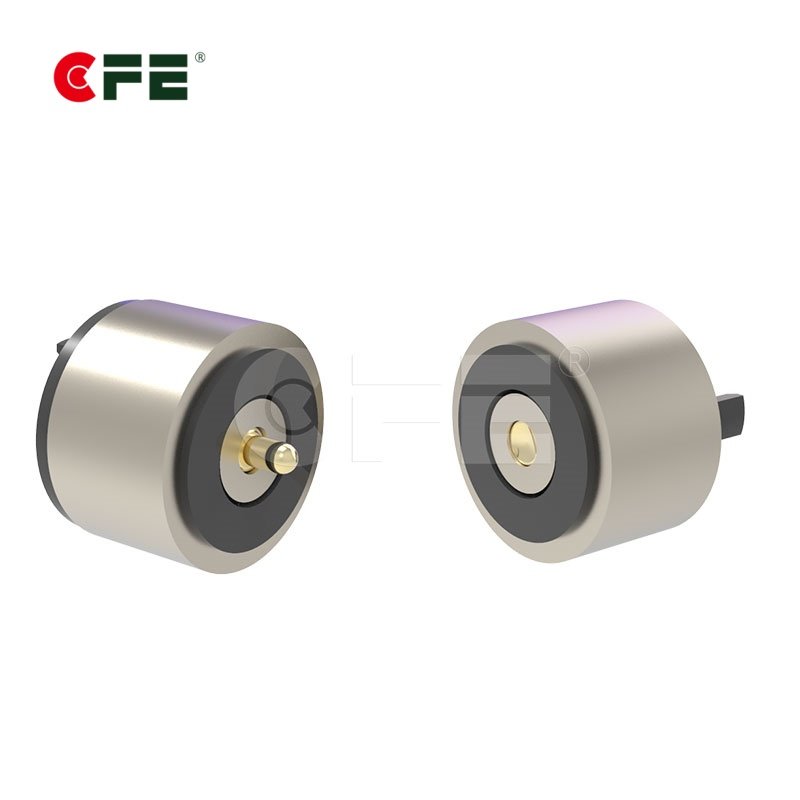

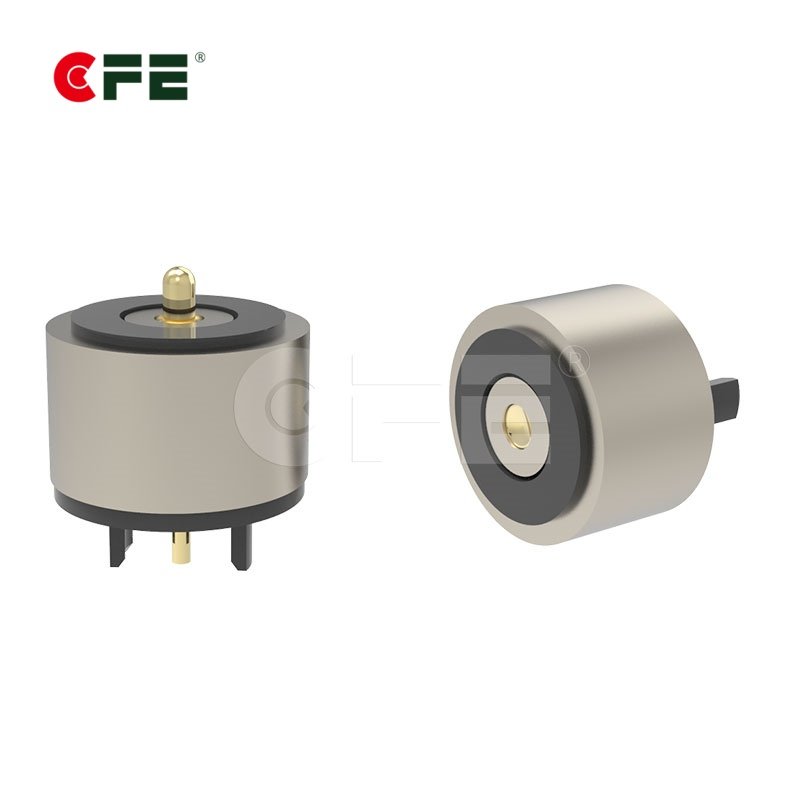

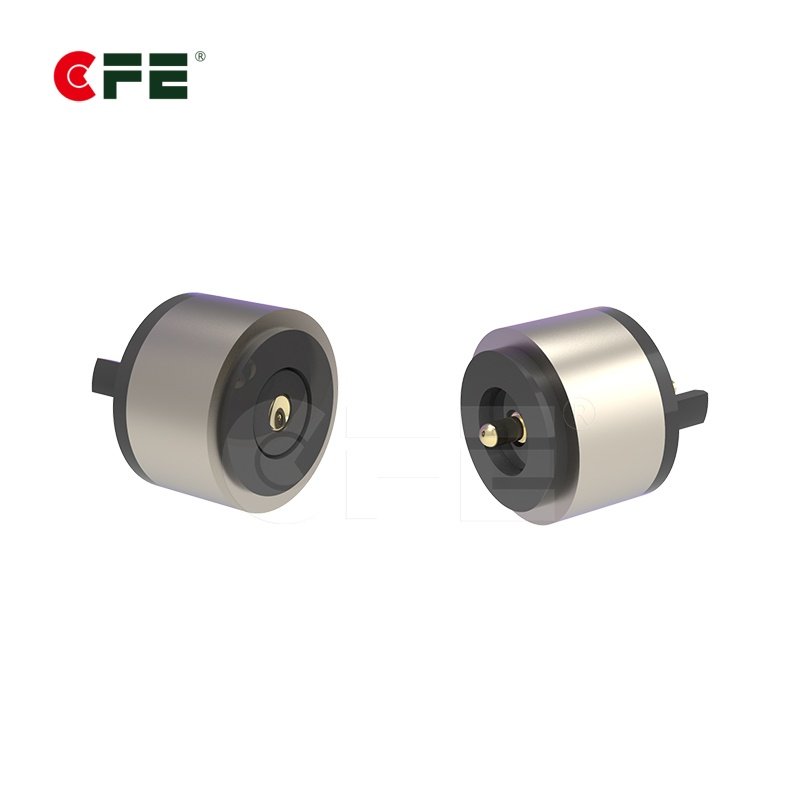

Round Male & Female Magnetic Power Connector

Description

Round male and female magnetic power connector manufacturers. Professional magnetic connector and magnetic cable connector manufacturers. 17 years of pains taking research on market products. Our magnetic dc power connector has many advantages like the high current and long life, quick charging, safe and efficient using.

Specification of CFE Round male and female magnetic power connector manufacturers—Male Part

Round male and female magnetic power connector manufacturers

Part No.	MMA-0041
Contact force	80±20 g at 1.1 mm working stroke
Life test	100,000 cycles
Rated voltage & current	12 V, 2 A
Contact resistance	50 milliohm Max
Application	Heated slippers, Smart toilet

Specification of CFE Round male and female magnetic power connector manufacturers—Female Part

Round male and female magnetic power connector manufacturers

Part No.	MFA-0041
Rated voltage & current	12 V, 5 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	Heated slippers, Smart toilet

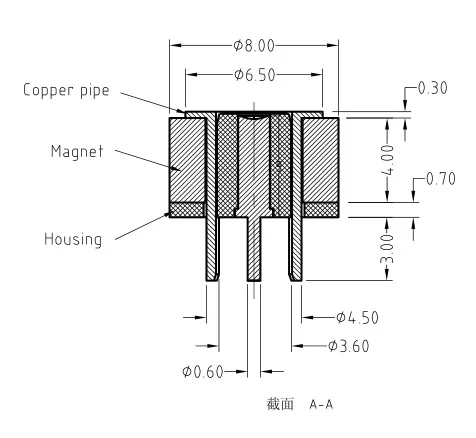

Downloaded	Drawing

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.

About us

DONGGUAN CFE ELECTRONIC CO., LTD. (hereinafter referred to as CFE), a subsidiary of CFE CORPORATION CO., LTD, was founded in 2009. CFE is a comprehensive national high-tech enterprise integrating design, research and development, manufacturing of precision pogo pins and magnetic connectors. We also provide services including precision turning parts, precision injection molding parts, magnetic charging cables, component assembly as well as design, development, and manufacture of production testing equipment.
