Waterproof 4 & 5 Pin Electrical Connectors IPX8

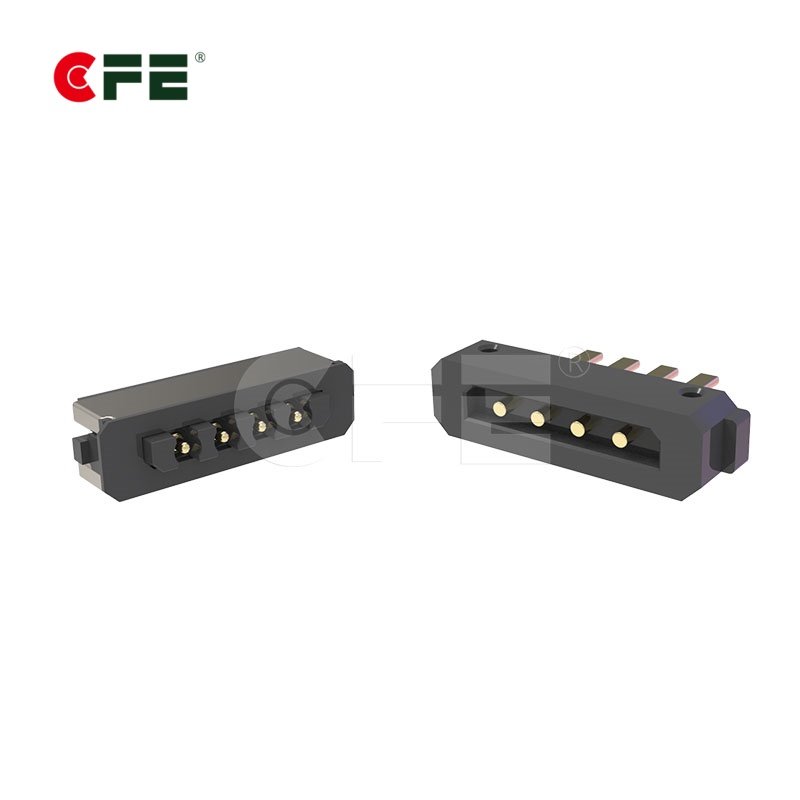

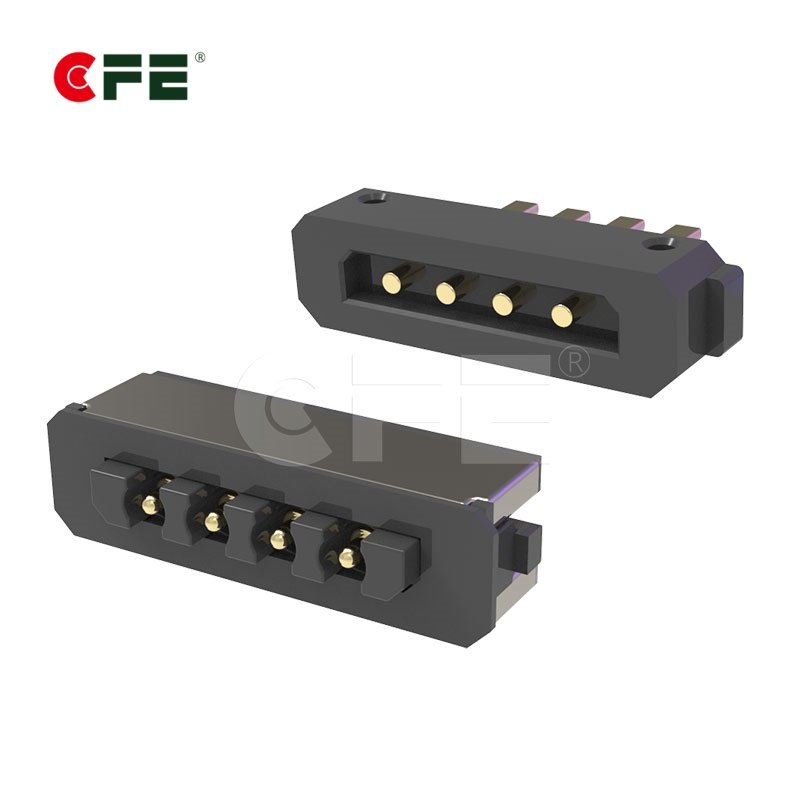

[MXA-0013] 4 Pin waterproof electrical connectors

P/N: MXA-0013
Magnetic force：8 N
Voltage&Current: 12 V, 1 A
Magnet: NdFeB， permanent magnets
Life test:20,000 cycles
Pass Rohs, reach, HF, environmental protection

Description

4 Pin waterproof electrical connectors, 14 years of painstaking research on market products. The products can achieve excellent waterproof design, the host female can achieve dust-proof and waterproof (IPX8). 4 pin waterproof electrical connectors have update waterproof rate. Our engineers will design of magnetic connector according to customers requirements.

Specification of CFE 4 Pin waterproof electrical connectors—Male Part

4 Pin waterproof electrical connectors

Part No.	MMA-0013
Contact force	40±20 g at 0.60 mm working stroke
Life test	20,000 cycles
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Application	Bluetooth speaker

Specification of CFE 4 Pin waterproof electrical connectors—Female Part

4 Pin waterproof electrical connectors

Part No.	MFA-0013
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application	Bluetooth speaker

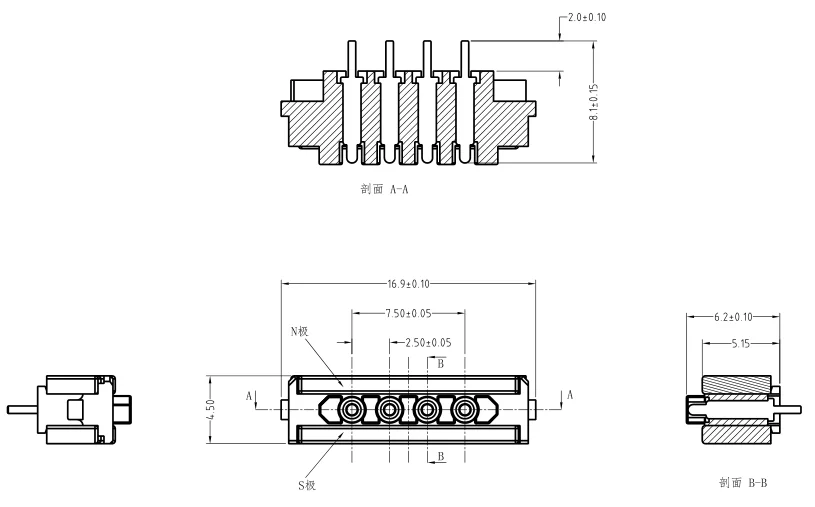

Downloaded	Drawing

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
